4G63 2.2L I-beam Stroker Kit (86MM/+0.040″ Bore)

Part Number: NIT-STK-4G63I2286
Bore: 86MM/+0.040"
Stroke: 94mm
Material: EN40B
Connecting Rod: I-Beam
Rod length: 153mm
Capacity: 2.2L

The 4G63 is, very much so a tried, true and tested platform. The 4G63 is synonymous with the Mitsubishi Evolution brand and has earned a reputation as a strong and reliable 2.0L kit throughout the years. However, as time has progressed, the desire for greater capacity has given rise to us developing a kit that increases the capacity to 2.2L

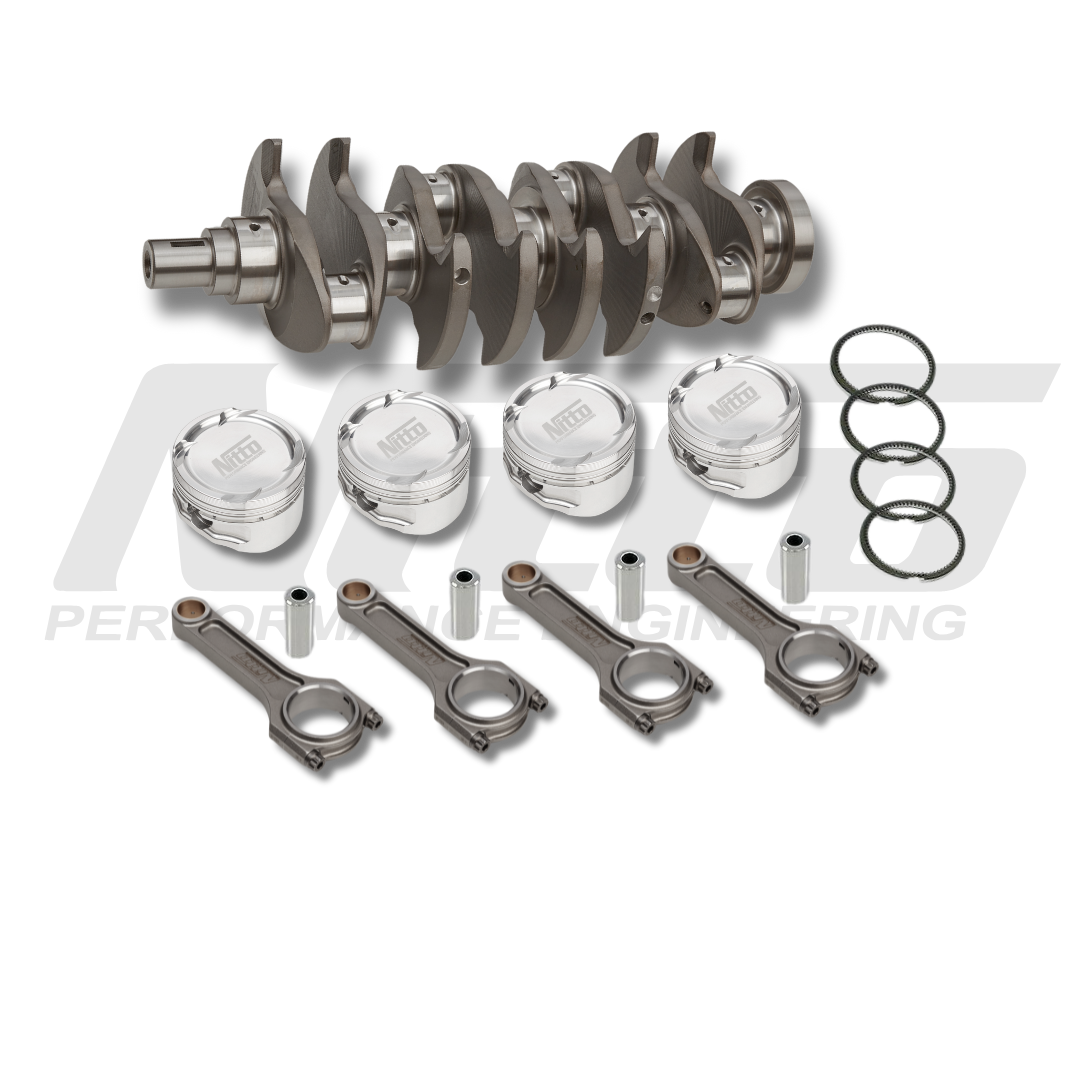

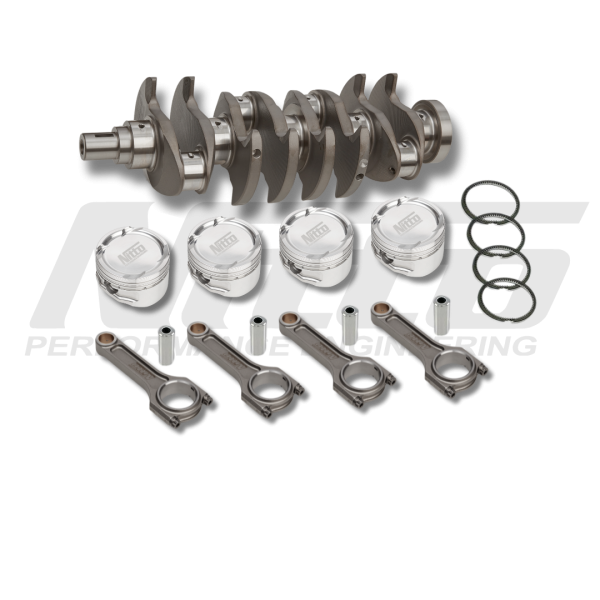

The kit consists of Nitto/CP pistons in either 85.5mm/+0.020" or 86mm/+0.040", cut from the Turbo HD forging, PVD Turbo ring set for the ultimate sealing capabilities and, of course, the CP 9310 wrist pins. Nitto 4340 153mm I-beam and H-beam connecting rods are both available for the stroker kits and come with ARP 2000 rod bolts as standard. The option to purchase Custom Age 625 rod bolts is also available on purchase. Finally, the Nitto 4G63 2.2L EN40B stroker crank is also included in the kit.

Please allow 4 - 14 days for postage and handling.
