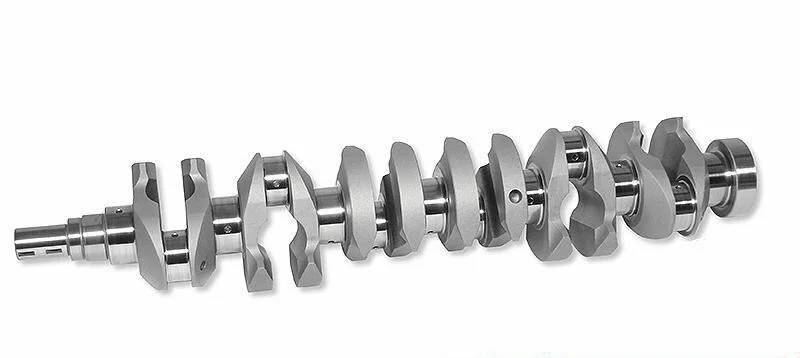

Rb26 Crankshafts

RB26 Crankshafts

Part Number Stroke Capacity Oiling System

NIT-CNK-RB26777WD (Wide Journal)77.7MM2.8L

Straight ShotNIT-CNK-RB26S75775.7MM2.7L

Tear Drop Cross DrilledNIT-CNK-RB26S77777.7MM2.8L

Tear Drop Cross DrilledNIT-CNK-RB26STD73.7MM2.6LTear Drop Cross Drilled

Nitto 4340 Billet Steel crankshafts are manufactured from high quality true billet round bar stock. Most other aftermarket crankshafts are manufactured using cast forged material, which is a much cheaper manufacturing process and hence carry a cheaper price tag, but their performance, strength and horsepower capabilities are significantly compromised compared to that of a true billet crankshaft. An engine with a 4340 billet steel crankshaft will rev faster and cleaner due to the different harmonics produced from the high grade material.

All of our 4340 cranks are

• 4340 Billet Round Bar Stock
• Grade Tested (X-ray - Sonic)
• Quenched and Heat Treated
• Fully Counter Weighted
• Nitrided
• Balanced
• Knife Edged (where applicable)
• 100% CNC Profiled
• 100% CNC Drilled and Tapped

Please allow 3 to 14 days for postage and handling***
